Mobile TOC Floating Action Button

The Zer0-Mistakes theme features a redesigned mobile table of contents with a Floating Action Button (FAB) pattern.

Overview

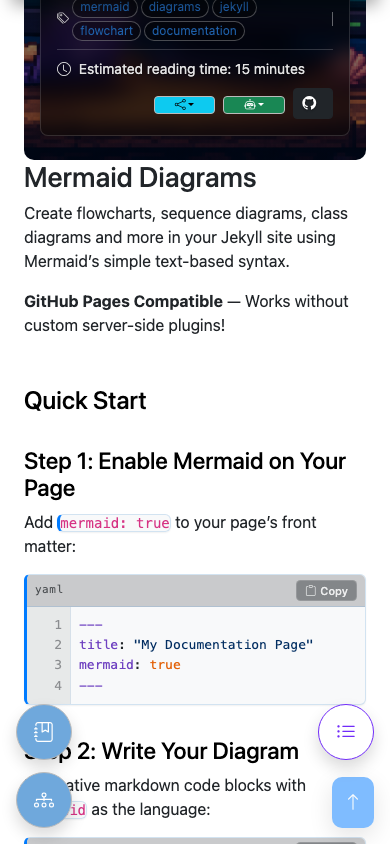

On mobile devices (< 992px), the table of contents is accessible via a floating button positioned at the bottom-right corner of the screen.

Features

• FAB Pattern: Material design-inspired floating button
• Fixed Position: Always accessible while scrolling
• Proper Z-Index: Doesn’t conflict with other elements
• Accessibility: Full ARIA support

Implementation

Button Markup

<div class="d-lg-none position-fixed bottom-0 end-0 p-3" style="z-index: 1030;">
  <button class="btn btn-primary rounded-circle shadow-lg"
          style="width: 56px; height: 56px;"
          data-bs-toggle="offcanvas"
          data-bs-target="#tocSidebar"
          aria-label="Table of contents">
    <i class="bi bi-list-ul fs-4"></i>
  </button>
</div>

Key Attributes

Attribute	Value	Purpose
d-lg-none	Bootstrap	Hide on large screens
position-fixed	CSS	Keep button in view
bottom-0 end-0	Bootstrap	Position bottom-right
z-index: 1030	CSS	Above content, below modals
rounded-circle	Bootstrap	Circular button
shadow-lg	Bootstrap	Elevation effect

Sizing

Following Material Design guidelines:

• Width: 56px (standard FAB)
• Height: 56px (standard FAB)
• Icon: 24px (fs-4)
• Padding: 16px around button (p-3)

Offcanvas Integration

The button opens a Bootstrap offcanvas from the right:

<div class="offcanvas offcanvas-end" id="tocSidebar" tabindex="-1">
  <div class="offcanvas-header">
    <h5 class="offcanvas-title">On This Page</h5>
    <button type="button" class="btn-close" data-bs-dismiss="offcanvas"></button>
  </div>
  <div class="offcanvas-body">
    <!-- TOC content -->
  </div>
</div>

Customization

Button Color

/* Use secondary color */
.toc-fab {
  background-color: var(--bs-secondary);
}

/* Use custom color */
.toc-fab {
  background-color: #6366f1;
  border-color: #6366f1;
}

Position

/* Move to bottom-left */
.toc-fab-container {
  left: 0;
  right: auto;
}

/* Adjust spacing */
.toc-fab-container {
  padding: 1.5rem;
}

Icon

<!-- Alternative icons -->
<i class="bi bi-journal-text"></i>
<i class="bi bi-card-list"></i>
<i class="bi bi-menu-button-wide"></i>

Accessibility

ARIA Attributes

<button aria-label="Open table of contents"
        aria-expanded="false"
        aria-controls="tocSidebar">

Focus Management

• Button is focusable via Tab
• Opens offcanvas on Enter/Space
• Focus returns to button on close

Screen Readers

The button announces:

1. “Open table of contents, button”
2. On open: “Table of contents, dialog”

Responsive Behavior

Screen Size	Behavior
< 992px	FAB visible, offcanvas TOC
≥ 992px	FAB hidden, sidebar TOC

CSS Classes

/* Bootstrap responsive utility */
.d-lg-none {
  /* Display: none on lg and up */
}

/* Show only on mobile */
@media (max-width: 991.98px) {
  .toc-fab { display: block; }
}

Best Practices

Do

• ✅ Keep button accessible while scrolling
• ✅ Use recognizable icon
• ✅ Provide visual feedback on tap
• ✅ Ensure adequate tap target (44x44px minimum)

Don’t

• ❌ Cover important content
• ❌ Use too many FABs
• ❌ Make button too small
• ❌ Forget accessibility labels

Troubleshooting

Button Not Visible

1. Check viewport width (must be < 992px)
2. Verify Bootstrap CSS loaded
3. Check z-index conflicts

Offcanvas Not Opening

1. Verify Bootstrap JS loaded
2. Check data-bs-target matches ID
3. Look for JavaScript errors

Position Issues

1. Check for conflicting position: fixed elements
2. Verify z-index stacking
3. Test on actual mobile device
