Mermaid Diagrams for Jekyll Sites

Mermaid diagrams are enabled with one front matter flag and a standard code fence: no server-side plugin and no CDN dependency, because the renderer is vendored with the theme.

GitHub Pages Compatible — Works without custom server-side plugins!

What you’ll do: turn a ` ```mermaid ` code block into a rendered, zoomable diagram that follows your site’s color mode and skin.

Prerequisites:

• A page built with this theme (any layout)
• A Mermaid definition — try one in the Live Editor first

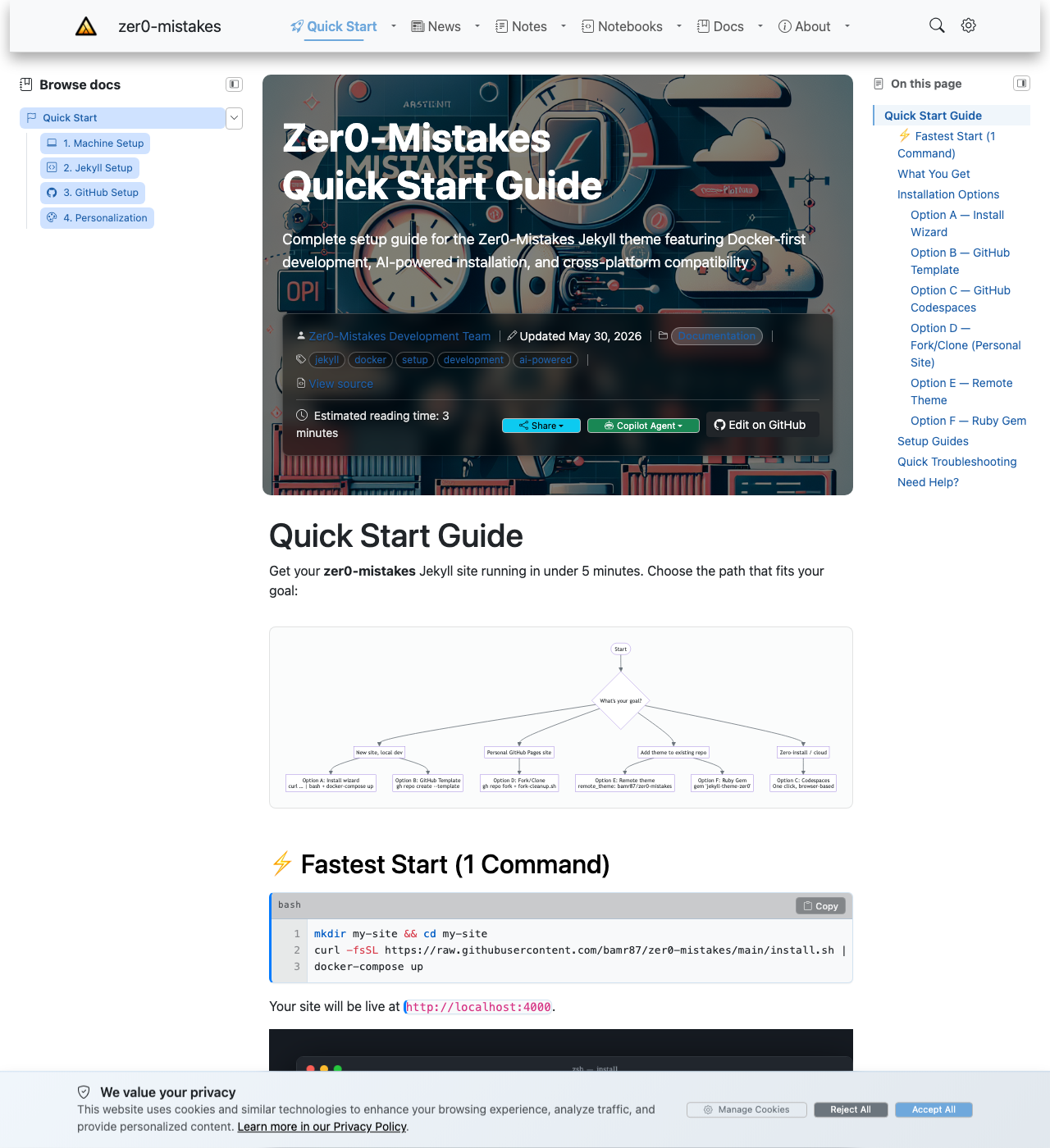

Every diagram on a page renders as a figure with its own toolbar. Hover the diagram below (or tap it on a phone) to see the controls:

flowchart TD
    accTitle: Choose an install path
    accDescr: Decision flowchart from "What's your goal?" to the six install options.
    A([Start]) --> B{What's your goal?}
    B --> C[New site, local dev]
    B --> D[Personal GitHub Pages site]
    B --> E[Add theme to existing repo]
    B --> F[Zero-install / cloud]
    C --> C1["Install wizard\ncurl … | bash + docker-compose up"]
    C --> C2["GitHub Template\ngh repo create --template"]
    D --> D1["Fork / clone\ngh repo fork + fork-cleanup.sh"]
    E --> E1["Remote theme\nremote_theme: bamr87/zer0-mistakes"]
    E --> E2["Ruby gem\ngem 'jekyll-theme-zer0'"]
    F --> F1["Codespaces\nOne click, browser-based"]

The caption under the diagram comes from its accTitle line — see Captions and accessible names.

Quick start

Step 1: Enable Mermaid on your page

Add mermaid: true to your page’s front matter:

---
title: "My Documentation Page"
mermaid: true
---

Step 2: Write your diagram

Use native Markdown code blocks with mermaid as the language:

```mermaid
graph TD
    A[Start] --> B{Decision}
    B -->|Yes| C[Success]
    B -->|No| D[Try Again]
```

That’s it! The diagram renders automatically.

Verify

Reload the page. The code block is replaced by a bordered figure containing the diagram; hovering it reveals the toolbar in the top-right corner. If you still see the raw text, work through Troubleshooting.

What every diagram gets

Each ` ```mermaid ` block becomes a <figure> with a rendered SVG and a small toolbar. Nothing extra to write — it is the same block you would write for GitHub.

The toolbar

The toolbar appears on hover or keyboard focus on desktop, and sits above the diagram on touch devices.

Keyboard shortcuts

Tab to a diagram (its frame is focusable, and also scrollable), then:

Captions and accessible names

Mermaid’s accessibility directives double as the figure’s caption and screen-reader name:

```mermaid
flowchart LR
    accTitle: How a fence becomes a figure
    accDescr: The theme converts a mermaid code fence into a figure and renders it.
    A["Mermaid code fence"] --> B["mermaid-diagrams.js"]
    B --> C{Parse OK?}
    C -- yes --> D["SVG figure + toolbar"]
    C -- no --> E["Error card + source"]
```

flowchart LR
    accTitle: How a fence becomes a figure
    accDescr: The theme converts a mermaid code fence into a figure and renders it.
    A["Mermaid code fence"] --> B["mermaid-diagrams.js"]
    B --> C{Parse OK?}
    C -- yes --> D["SVG figure + toolbar"]
    C -- no --> E["Error card + source"]

• accTitle becomes the visible caption and the accessible name of the diagram frame (the aria-label on the scrollable region); Mermaid also writes it into the SVG’s <title>.
• accDescr is passed through to Mermaid’s renderer, which inserts it as the SVG’s <desc>, read by screen readers.
• Without accTitle, the diagram is named by its type (“Flowchart”, “Sequence diagram”, …).

Colors follow your theme

Diagram colors are not configured anywhere. They are derived at render time from the theme’s design tokens (--bs-primary, --bs-body-bg, --zer0-color-*), so a diagram matches whatever the reader is looking at: light or dark mode, any skin, and any theme_color override. Switch the color mode with the toggle in the navbar and watch the diagram above re-render.

Per-node styling (classDef, style) still works — the theme no longer overrides SVG colors with !important.

When a diagram has a typo

A syntax error does not blank the page or dump raw SVG text. The figure shows what went wrong and keeps the source visible, and the Copy control still works so you can paste it straight into the Live Editor. The diagram below is intentionally broken (a single -> where Mermaid needs -->):

graph TD
    A[Start] -> B[Broken arrow]

Without JavaScript

The vendored Mermaid bundle and the theme’s script both load with defer, so they never block the page. If JavaScript is unavailable, or the script fails to load, the block stays a normal, readable code block — the definition is never hidden.

Configuration

Site configuration

Everything under mermaid: in _config.yml is optional:

mermaid:
  src: '/assets/vendor/mermaid/mermaid.min.js'   # vendored, no CDN
  security_level: strict   # strict | loose
  toolbar: true            # zoom / fullscreen / copy / download controls
  fullscreen: true         # allow the fullscreen view
  download: true           # allow "Download as SVG"

The toolbar labels are translated with the rest of the UI through _data/ui-text.yml (diagram_* keys).

See Vendored Bootstrap & Icon Assets for the full asset refresh workflow.

How it works

1. Front matter flag — mermaid: true enables Mermaid on the page
2. Conditional loading — the scripts load only on pages that opt in, and never block rendering
3. Client-side rendering — no server-side plugin required
4. Figure chrome — assets/js/mermaid-diagrams.js converts each fence into a figure, renders it, and re-renders when the color mode or skin changes

Diagram types

1. Flowcharts

The most common diagram type for documenting processes and workflows.

Directions:

• TD / TB — Top to Bottom
• BT — Bottom to Top
• LR — Left to Right
• RL — Right to Left

```mermaid
graph LR
    A[Input] --> B[Process]
    B --> C{Valid?}
    C -->|Yes| D[Success]
    C -->|No| E[Error]
```

graph LR
    A[Input] --> B[Process]
    B --> C{Valid?}
    C -->|Yes| D[Success]
    C -->|No| E[Error]

Node Shapes:

Link Types:

2. Sequence diagrams

Perfect for documenting API calls, user interactions, and system communication.

```mermaid
sequenceDiagram
    participant User
    participant Browser
    participant Server

    User->>Browser: Click button
    Browser->>Server: API request
    Note over Server: Validate + query
    Server-->>Browser: JSON response
    Browser-->>User: Display result
```

sequenceDiagram
    participant User
    participant Browser
    participant Server

    User->>Browser: Click button
    Browser->>Server: API request
    Note over Server: Validate + query
    Server-->>Browser: JSON response
    Browser-->>User: Display result

Arrow Types:

3. Class diagrams

Document code architecture and relationships.

```mermaid
classDiagram
    class JekyllSite {
        +String title
        +Array pages
        +build()
        +serve()
    }

    class Page {
        +String content
        +Hash frontMatter
        +render()
    }

    JekyllSite --> Page : contains
```

classDiagram
    class JekyllSite {
        +String title
        +Array pages
        +build()
        +serve()
    }

    class Page {
        +String content
        +Hash frontMatter
        +render()
    }

    JekyllSite --> Page : contains

4. State diagrams

Model state machines and workflows.

```mermaid
stateDiagram-v2
    [*] --> Draft
    Draft --> Review : Submit
    Review --> Published : Approve
    Review --> Draft : Reject
    Published --> [*]
```

stateDiagram-v2
    [*] --> Draft
    Draft --> Review : Submit
    Review --> Published : Approve
    Review --> Draft : Reject
    Published --> [*]

5. Entity relationship diagrams

Document database schemas.

```mermaid
erDiagram
    POST ||--o{ TAG : has
    POST {
        string title
        string content
        date published_at
    }
    TAG {
        string name
        string slug
    }
```

erDiagram
    POST ||--o{ TAG : has
    POST {
        string title
        string content
        date published_at
    }
    TAG {
        string name
        string slug
    }

6. Pie charts

Visualize data distributions.

```mermaid
pie title Page Views by Section
    "Blog" : 45
    "Docs" : 30
    "Tutorials" : 15
    "About" : 10
```

pie title Page Views by Section
    "Blog" : 45
    "Docs" : 30
    "Tutorials" : 15
    "About" : 10

7. Gantt charts

Project timelines and schedules.

```mermaid
gantt
    title Project Timeline
    dateFormat  YYYY-MM-DD
    section Phase 1
    Research        :a1, 2026-01-01, 30d
    Design          :a2, after a1, 20d
    section Phase 2
    Development     :a3, after a2, 45d
    Testing         :a4, after a3, 15d
```

A richer version demonstrates status tags and axis formatting:

gantt
    title Project Timeline
    dateFormat  YYYY-MM-DD
    axisFormat  %b %d
    tickInterval 2week
    section Phase 1
    Research        :done, a1, 2026-01-01, 30d
    Design          :active, a2, after a1, 20d
    section Phase 2
    Development     :a3, after a2, 45d
    Testing         :crit, a4, after a3, 15d

done, active and crit tags pick up the theme’s muted, accent and danger colors; axisFormat and tickInterval keep the axis labels from crowding on narrow screens.

8. Git graphs

Visualize Git branching and commits.

```mermaid
gitGraph
    commit
    branch feature
    checkout feature
    commit
    commit
    checkout main
    merge feature
    commit
```

gitGraph
    commit
    branch feature
    checkout feature
    commit
    commit
    checkout main
    merge feature
    commit

Syntax options

Option A: Native Markdown (recommended)

Use fenced code blocks — cleanest and most portable:

```mermaid
graph TD
    A --> B
```

Option B: HTML div

Use <div class="mermaid"> — works when Markdown doesn’t:

<div class="mermaid">
graph TD
    A --> B
</div>

When to use each

Both forms get the same figure, toolbar and theming.

Styling and themes

Automatic theming

You do not pick a Mermaid theme. The theme uses Mermaid’s base theme and fills its variables from the site’s live design tokens, so:

• Light / dark / wizard color modes each get a legible palette, and a mode switch re-renders every diagram in place.
• Skins (data-theme-skin) recolor node borders, fills and series colors to the skin’s brand.
• theme_color overrides in _config.yml flow through the same tokens.
• Series colors for pie slices, git branches and mind maps fan out from the brand hue, so they stay distinct in both modes.

Overriding a single diagram

A Mermaid directive at the top of a block still wins for that diagram — useful when a specific chart needs a specific look:

```mermaid
%%{init: {'theme': 'forest'}}%%
graph LR
    A --> B
```

Per-node styling works as documented by Mermaid:

```mermaid
graph LR
    A[Normal] --> B[Highlighted]
    classDef hot fill:#fde68a,stroke:#b45309,color:#1f2937
    class B hot
```

graph LR
    A[Normal] --> B[Highlighted]
    classDef hot fill:#fde68a,stroke:#b45309,color:#1f2937
    class B hot

JavaScript API

The component exposes a small API for pages that inject content after load (tabs, search results, the AI chat):

// Convert and render any new ```mermaid fences under a root element
window.zer0Mermaid.renderAll(document.querySelector('#tab-pane'));

// Re-derive the palette and re-render everything (after changing tokens)
window.zer0Mermaid.refresh();

// Render one element (a <pre>, <div class="mermaid">, or existing figure)
window.zer0Mermaid.render(element, 'graph TD; A --> B');

// Read a figure's source, or open it fullscreen
window.zer0Mermaid.getSource(figure);
window.zer0Mermaid.openFullscreen(figure);

Events: zer0:diagram-rendered fires on each figure (detail.ok, detail.type, detail.error); zer0:diagrams-ready fires on document once a batch is done (detail.count, detail.failed).

Troubleshooting

Diagram not rendering

Common syntax errors

Wrong: graph TD A -> B      (single arrow)
Right: graph TD A --> B     (double arrow)

Wrong: graph TD A[Text]B    (no arrow between nodes)
Right: graph TD A[Text] --> B

graph TD and flowchart TD are equivalent: flowchart is the current keyword, graph a legacy alias that Mermaid still accepts.

Testing locally

# Start Jekyll dev server
docker-compose up

# Check browser console for errors
# Open http://localhost:4000/your-page

Accessibility

• Each diagram is a <figure>; accTitle becomes its <figcaption> and accessible name.
• The diagram frame is a focusable, keyboard-operable region (see shortcuts), so a diagram wider than the page is never trapped behind a mouse-only scroll.
• Toolbar buttons are real <button>s with labels; zoom level and copy feedback are announced through a polite live region.
• The fullscreen view is a native <dialog>: focus is trapped inside it, Esc closes it, and focus returns to the control that opened it.
• Series colors are chosen at a fixed lightness per color mode so adjacent pie slices and branches stay distinguishable.

Best practices

1. Only enable when needed — use mermaid: true only on pages with diagrams
2. Give diagrams an accTitle — it is the caption, the accessible name, and the file name of an SVG export
3. Keep diagrams simple — complex diagrams slow rendering
4. Test in Live Editor — use mermaid.live first
5. Add descriptions — complex diagrams need text explanations
6. Use clear labels — avoid abbreviations

Resources

• Mermaid Documentation: mermaid.js.org
• Live Editor: mermaid.live
• Syntax Reference: Mermaid Syntax
• Accessibility directives: Mermaid Accessibility
• Theme Configuration: Mermaid Theming

Technical reference

For implementation details (file changes, test suite):

• Mermaid Integration v2.0 → docs/implementation/feature-change-log.md — describes the earlier <div class="mermaid"> approach; the current figure, toolbar and token-theming rework is registered as ZER0-013 in _data/features.yml
• Component files: _includes/components/mermaid.html (loader), assets/js/mermaid-diagrams.js (behaviour), _sass/components/_mermaid.scss (styles)
• Regression test: test/visual/features/mermaid.spec.js
