MathJax Math

Display mathematical equations and formulas using LaTeX-style syntax with MathJax.

Quick Start

Step 1: Enable MathJax

Add mathjax: true to your page’s front matter:

---
title: "My Math Page"
mathjax: true
---

Step 2: Write Equations

Inline math with single dollar signs:

The Pythagorean theorem states that $a^2 + b^2 = c^2$.

Display math with double dollar signs:

$$
E = mc^2
$$

---

Configuration

Theme Integration

The theme includes MathJax support. The include file loads MathJax conditionally:

{% if page.mathjax %}
<script type="text/x-mathjax-config">
  MathJax.Hub.Config({
    tex2jax: {
      inlineMath: [ ['$','$'], ['\\(','\\)'] ],
      displayMath: [ ['$$','$$'], ['\\[','\\]'] ],
      processEscapes: true
    },
    TeX: {
      equationNumbers: { autoNumber: "AMS" }
    }
  });
</script>
<script src="https://cdn.jsdelivr.net/npm/mathjax@3/es5/tex-mml-chtml.js" async></script>
{% endif %}

---

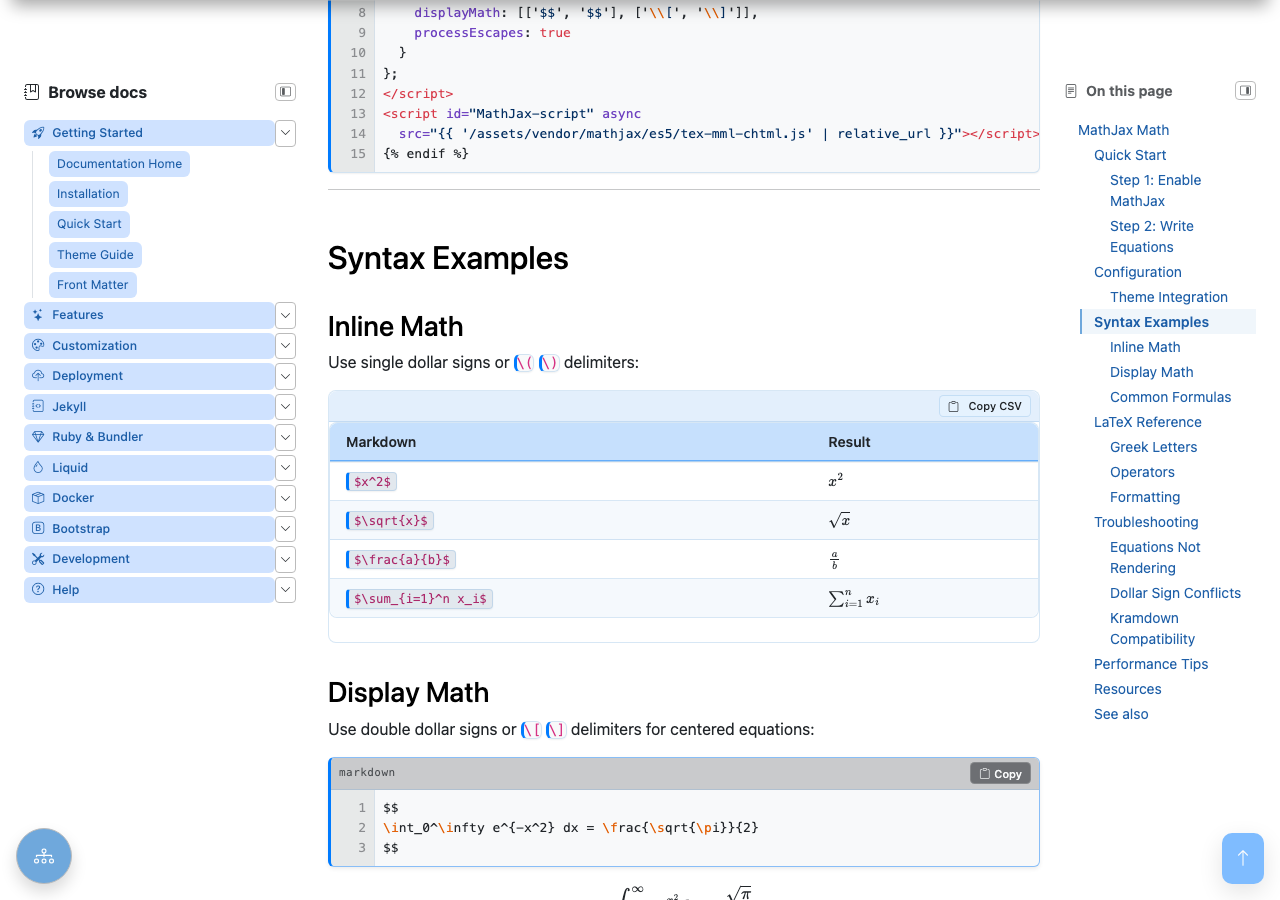

Syntax Examples

Inline Math

Use single dollar signs or \( \) delimiters:

Markdown	Result
$x^2$	$x^2$
$\sqrt{x}$	$\sqrt{x}$
$\frac{a}{b}$	$\frac{a}{b}$
$\sum_{i=1}^n x_i$	$\sum_{i=1}^n x_i$

Display Math

Use double dollar signs or \[ \] delimiters for centered equations:

$$
\int_0^\infty e^{-x^2} dx = \frac{\sqrt{\pi}}{2}
$$

\[\int_0^\infty e^{-x^2} dx = \frac{\sqrt{\pi}}{2}\]

Common Formulas

Quadratic Formula:

$$
x = \frac{-b \pm \sqrt{b^2 - 4ac}}{2a}
$$

\[x = \frac{-b \pm \sqrt{b^2 - 4ac}}{2a}\]

Matrix:

$$
A = \begin{pmatrix}
a & b \\
c & d
\end{pmatrix}
$$

\[A = \begin{pmatrix} a & b \\ c & d \end{pmatrix}\]

---

LaTeX Reference

Greek Letters

Code	Symbol	Code	Symbol
\alpha	$\alpha$	\beta	$\beta$
\gamma	$\gamma$	\delta	$\delta$
\pi	$\pi$	\sigma	$\sigma$
\omega	$\omega$	\theta	$\theta$

Operators

Code	Symbol	Description
\sum	$\sum$	Summation
\prod	$\prod$	Product
\int	$\int$	Integral
\partial	$\partial$	Partial derivative
\infty	$\infty$	Infinity
\approx	$\approx$	Approximately
\neq	$\neq$	Not equal
\leq	$\leq$	Less than or equal

Formatting

Code	Result	Description
x^2	$x^2$	Superscript
x_i	$x_i$	Subscript
\frac{a}{b}	$\frac{a}{b}$	Fraction
\sqrt{x}	$\sqrt{x}$	Square root
\sqrt[n]{x}	$\sqrt[n]{x}$	nth root
\overline{x}	$\overline{x}$	Overline
\hat{x}	$\hat{x}$	Hat

---

Troubleshooting

Equations Not Rendering

1. Check front matter — ensure mathjax: true is set
2. Check delimiters — use $...$ for inline, $$...$$ for display
3. Escape special characters — use \\ for backslash in some contexts
4. Check browser console — look for MathJax loading errors

Dollar Sign Conflicts

If you need literal dollar signs, escape them:

The price is \$5.00, but the formula is $x^2$.

Kramdown Compatibility

Kramdown processes content before MathJax. For complex equations, use the \[ and \] delimiters or wrap in HTML:

<div>
$$
\text{Complex equation here}
$$
</div>

---

Performance Tips

1. Only enable when needed — use mathjax: true selectively
2. Use async loading — the CDN script includes async attribute
3. Minimize equations — complex equations slow rendering
4. Consider pre-rendering — for static content, use images

---

Resources

• MathJax Documentation
• LaTeX Math Symbols
• Detexify — Draw symbols to find LaTeX code
• HostMath — Online equation editor

---
